Focus Server
-
Start the newest version of Focus Server.
-

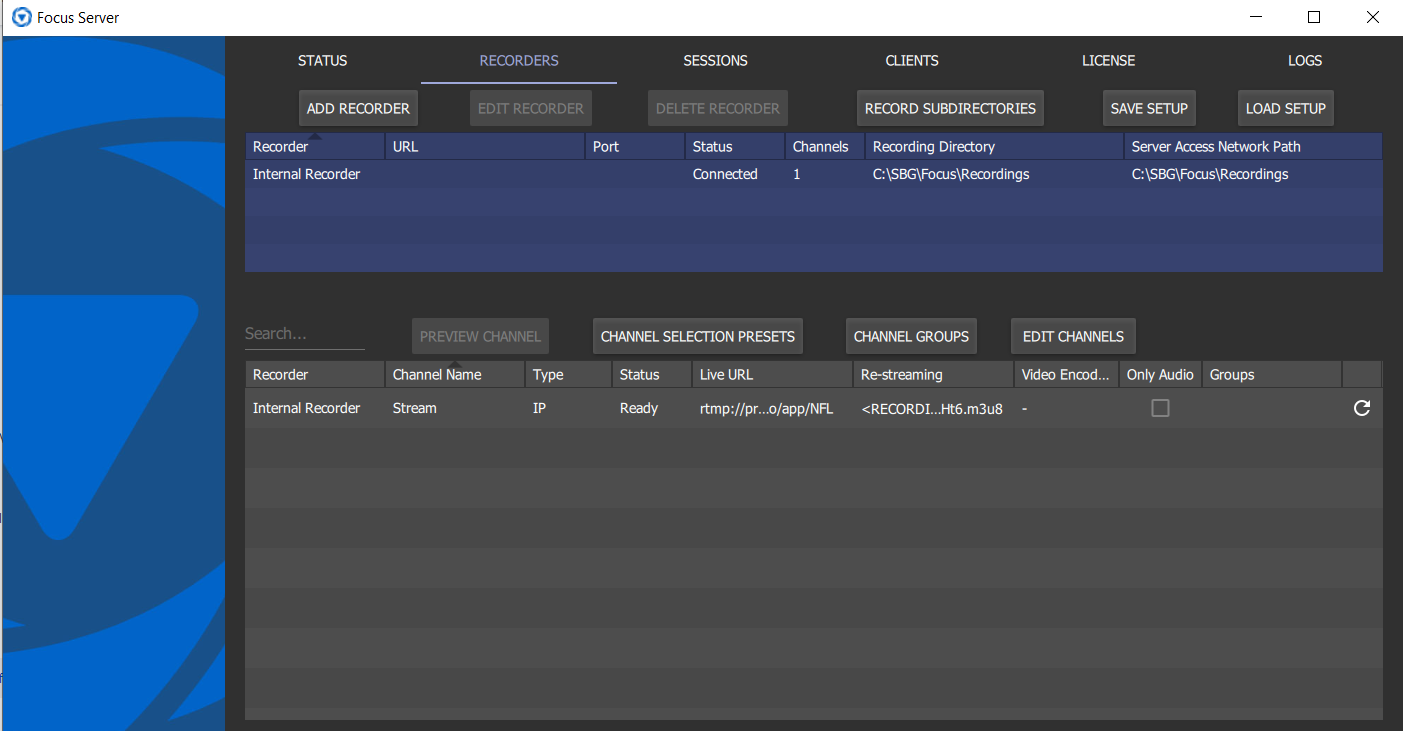

Follow this article to Add Channels in the Focus Server.
-
Start the Focus Session, go to the Sessions tab, then click New Session. Give it a name and click Save.
-
Focus Server will start recording the video files to your recordings directory.
Note: sessions started using Focus Server will always contain all the channels from your Recorders tab. If you want to avoid that, delete unnecessary channels or start the session using Focus Client instead.
MatchTracker
-
Open the newest version of MatchTracker.
-
Once opened, go to Settings > Live Servers.
-

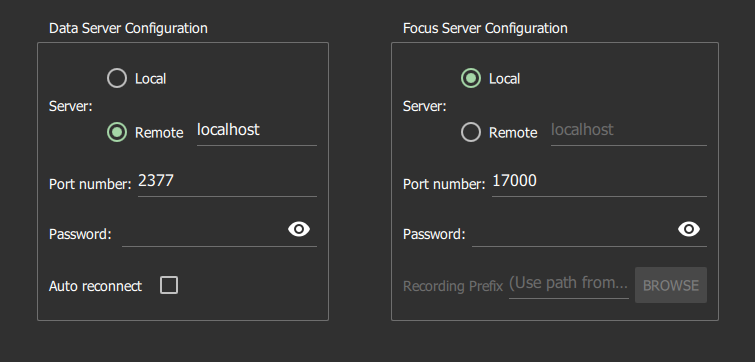

In the Data Server Configuration part, select Remote, then input your MatchTracker Server connection IP and port.
- In the Focus Server Configuration part, select Local, then go back to the main menu.
-
In the main menu, click Connect Live.
This will connect your MatchTracker Client to MatchTracker Server. You will be taken to the main MatchTracker dashboard. If you establish the connection less than 50 minutes before the game, you should see the line-ups in the eventing table. -

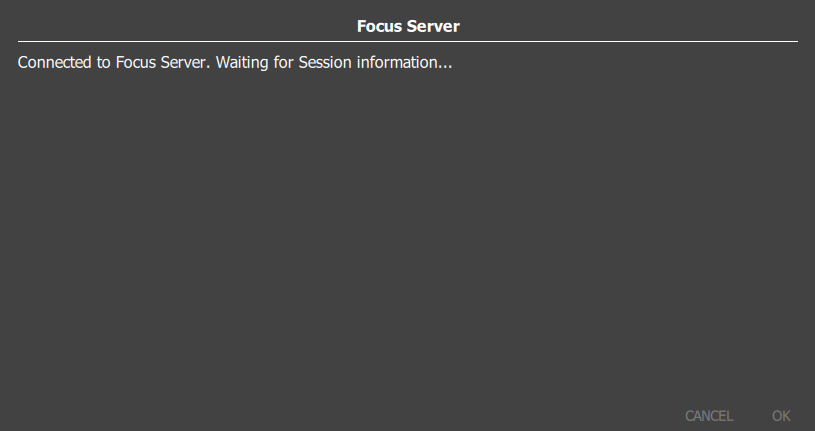

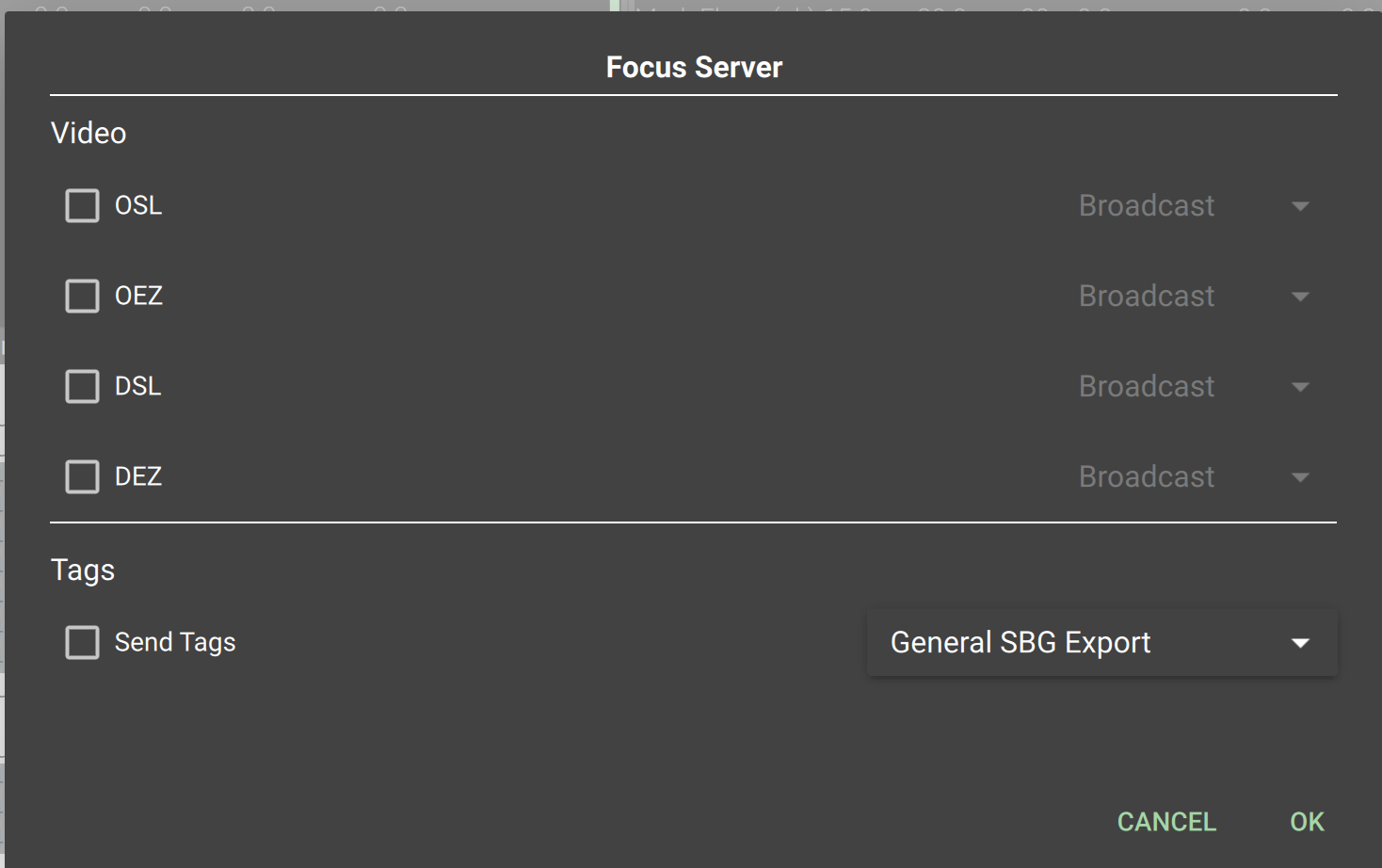

To bring the video into your project, navigate to the top bar. Click Servers > Focus Server.
This will allow you to associate the channels being recorded by your Focus Server with the video angles within MatchTracker.
Set them up however you wish and click OK. - If needed, sync the video with the eventing data – double click on the Kick Off event in the eventing table, right click on your video channel and select Sync Channel. Then, using the video overlay controls, find the Kick Off on the video and click Save.
