Creating Labels

Labels

The function of a Label is to attach additional information to a tag. By default, labels are applied to the most recent tag. They do not create an instance on a timeline.

For example, we may want to further describe our tagged passes with Labels, to mark an outcome e.g. "successful" and "unsuccessful".

If the user has selected tag(s) on the timeline the tagging template will enter Label Mode where labels can be applied to all currently selected tag(s).

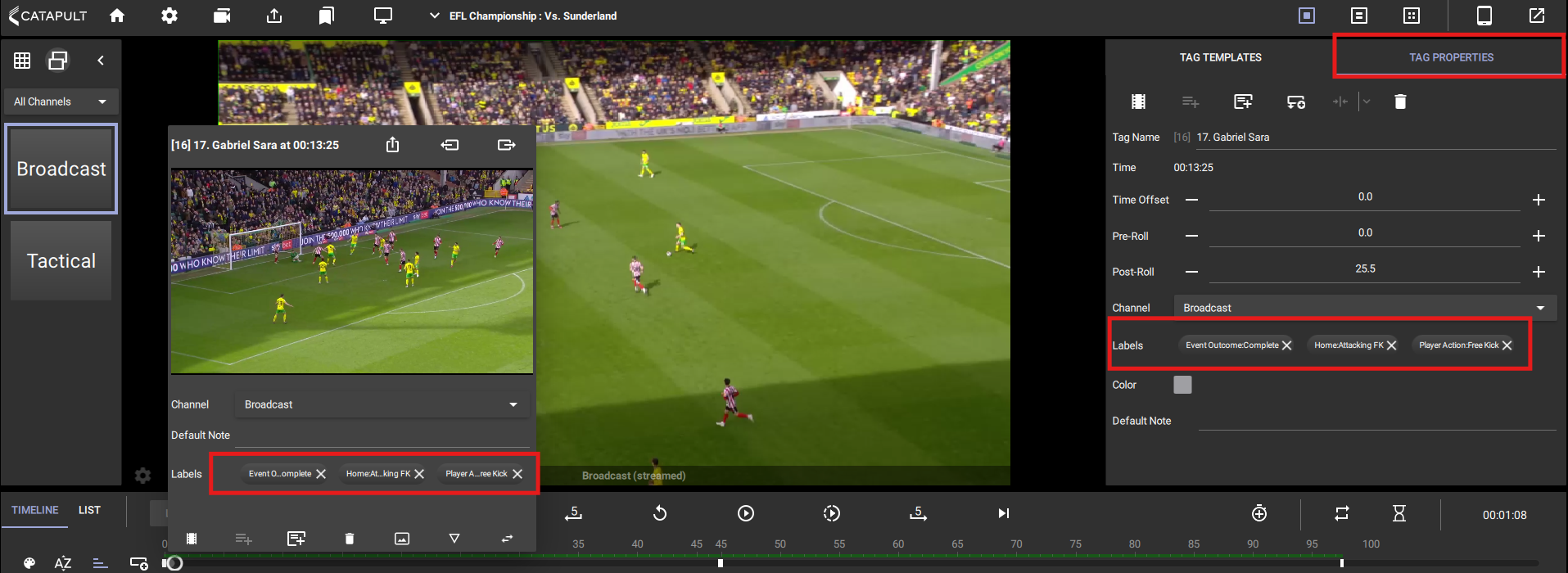

Labels can be visualised by selecting a tag and going to Tag Properties. Alternatively, they will appear in the Tag Preview window when clicking on a tag in the timeline.

Creating Labels

1. Navigate to the Tag Template window, and choose the Tag Template Designer.

2. To create a new label, choose the add Label button, and give it a name.


3. This will create a button in your tag template for the label.


Label Properties Explained

1. To get to the Label Properties, click on the label, and navigate to right hand pane.

2. Label Properties:
   • Label Name: Allows you to change the name of the label.
   • Group: Allows you to assign the label to a group.
   • Key Binding: Set a hotkey for the label. When you press this key it will assign the label to most recent tag.
   • Hover Tooltip: You can add in notes as a reminder as to what the tag/label is for when you hover over it.
   • Page Switch: Can change pages of the template on Activation of the label.
   • Edit Links: Links the label to activate/deactivate other tags.


   • Visual Properties: Allows you to change the order (front to back), position, height, width, and rotation of the label within the template.


   • Show Tag/Label Name: Shows the name on the tag/label button in the template.
   • Show Group Name: Shows the name of the group on the label button in the template.
   • Show Output: Create a mathematical calculation that will display on that tag.
   • Text Colour: Colour of the text in the tag.
   • Font Size: Change the size of the font.
   • Show Tag/Label Icon: Icon will be displayed on the button.
   • Show Key Binding: Hotkey will be listed on the button.
   • Image: You can browse and add an image to be displayed as the label.
   • Background Colour: Changes the colour of the button.
   • Opacity: Changes the transparency of the button.

For more information on labels, please see Global Labels
